| Pieces | Components |
|---|---|
| 2x1m | Square Tube V2A 20x20x1.5 |
| 1 | Toothed Belt Pulley 16Z with Setscrews |
| 1×2.1m | Toothed Belt – T2.5 or GT2 |
| 1 | Mounting Bracket for NEMA17 with M3x5 Screws |
| 8 | Ball Bearing 625 ZZ |
| 1 | Friction Bearing 8×10 0810 |
| 1 | Rivet 8×16 DIN660 |
| 1 | Casing G010 |
| 4 | M8 Knob |
| 4 | M8 Hey Cap |
| 5 | Zipties |
| 1 | Cable Clamp |
| Screws and Nuts | |
| 4 | M8x150 Hex Head Screw |
| 8 | M8 Thumb Nuts |
| 3 | 3/8″ Nut |
| 3 | 1/4″ to 3/8″ Zoll Adapter |
| 1 | 1/4″ Screw |
| 29 | M3 Nut |
| 8 | M3 Locknut |
| 2 | M3x30 Screw |
| 9 | M3x20 Screw |
| 2 | M3x16 Screw |
| 18 | M3x10 Screw |
| 2 | M3x6 Screw |
| X | M3 Flat Washer |
| 4 | M4 Nut |
| 4 | M4x80 |
| 8 | M5x16 Screw |
| 8 | M5 Nut |
| Electric | |
| 1 | Mega 2560 R3 ATmega16U2 Integrated Driver |
| 1 | RAMPS 1.5 oder 1.4 |
| 1 | Endstop |
| 1 | A4988 or Drv8825 with Heatsink |
| 1 | NEMA 17 Stepper Motor long: 47mm-48mm with Plug |
| 1 | Bluetooth Modul HC-06 |
| 2x4Pins | Female to Female Jumper Dupont 20cm |
| 1 | 12V Power Supply |
| 1 | USB Bluetooth Stick |
| 1 | 5.5*2.1mm Female Plug 12V DC Power Pigtail |
| 1 | Battery Holder Case 12V 8xAA |
| 1 | TLP281 4-Channel Opto-isolator |
| 1 | 2.5mm Audio Extension Cable 1.5m/5ft (Male Stereo to Female Adapter) |
| 1 | 2.5mm Audio Female Audio Plug (From 3.5mm Male to 2.5mm Female Adapter) |
| 1 | 2.5mm Camera Shutter Connecting Adapter |
| Accessories | |
| 1 | Smartphone Adapter |
| 1 | Adapter for GoPro with Screw |
| 1 | Metal Swivel |
| 1 | 1/4″ to 3/8″ Mini Adapter |
| Printing Parts All files are free but not allowed to reupload on other sites! | |
| 2 | Vierkanthalterung.stl |
| 3 | Mittelständer.stl |
| 2 | Wagenelement_Mitte.stl |
| 4 | Wagenelement_Lager.stl |
| 1 | Lagerhalterung.stl |
| 1 | Riemenklemme.stl |
| 1 | Endstopschutz.stl |
| 1 | DC_Buchsenhalterung.stl |
| 1 | Audio_Buchsenhalterung.stl |

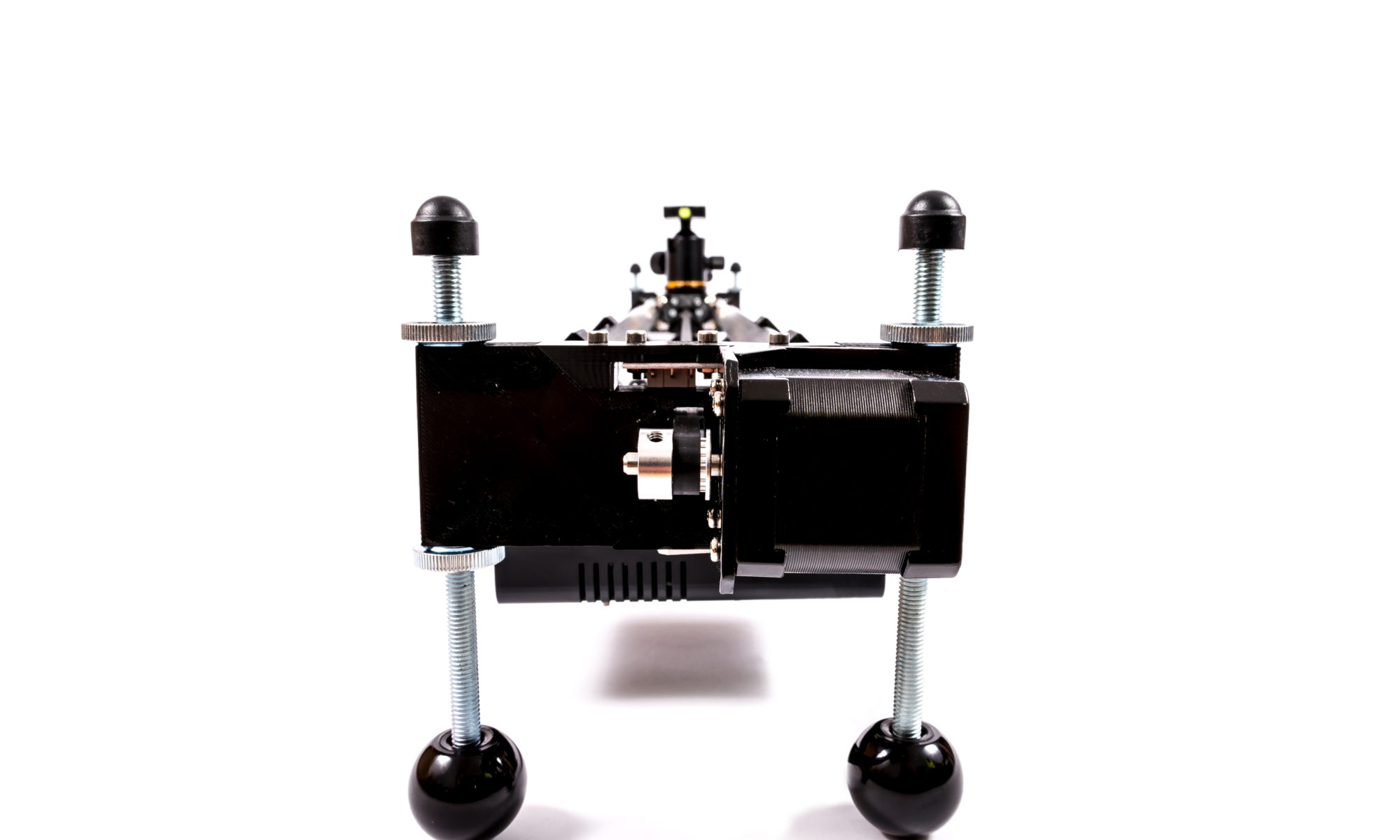

The Open Source App controlled camera slider by Tuncer Technik
